PPMS（Physical Property Measurement System）

Equipment specifications:
Made by Quantum Design Japan
Temperature range: 1.9 K to 400 K
Superconducting magnet: Vertical 7 Tesla
Horizontal: 7 Tesla
Measurement items: Measurement of electrical properties, magnetization properties, and specific heat

Installation location: No. 3 physics laboratory

Tetra-arc Furnance

Equipment specifications: TAC-5100ACT made by G.E.S Corporation
Controllable discharge current: 0 to 50 A±0.05 A
Achieving temperature: 2700°C
Pull speed: 0 to 46 mm/h
Seed and hearth rotation speed: 0 to 10 rpm

Installation location: No. 3 chemistry laboratory

Scanning electron microscope (SEM)

Equipment specifications:
JSM-6390A by JEOL
Accelerating voltage: 30 kV
EDS analyzer

Installation location: Measurement laboratory

CHNSO Elemental Analyser

Equipment specifications:
Flash EA1112 made by Thermo Quest
Analyzed elements: Carbon, nitrogen, hydrogen, sulfur, oxygen

Installation location: Measurement laboratory

Powder X-ray diffractometer (XRD)

Equipment specifications:
MiniFlex II made by Rigaku Corporation
Tube voltage output: 30 kV (fixed)
Tube current output: 15 mA (fixed)
X-ray tube: Cu
Integrated powder X-ray analysis software PDXL

Installation location: No. 3 physics laboratory

Single crystal structure analyzer

Equipment specifications:
R-AXIS RAPID II made by Rigaku Corporation
X-ray generator: Mo sealed tube
Imaging plate method
Structure analysis software
Spray cooler

Installation location: No. 3 physics laboratory

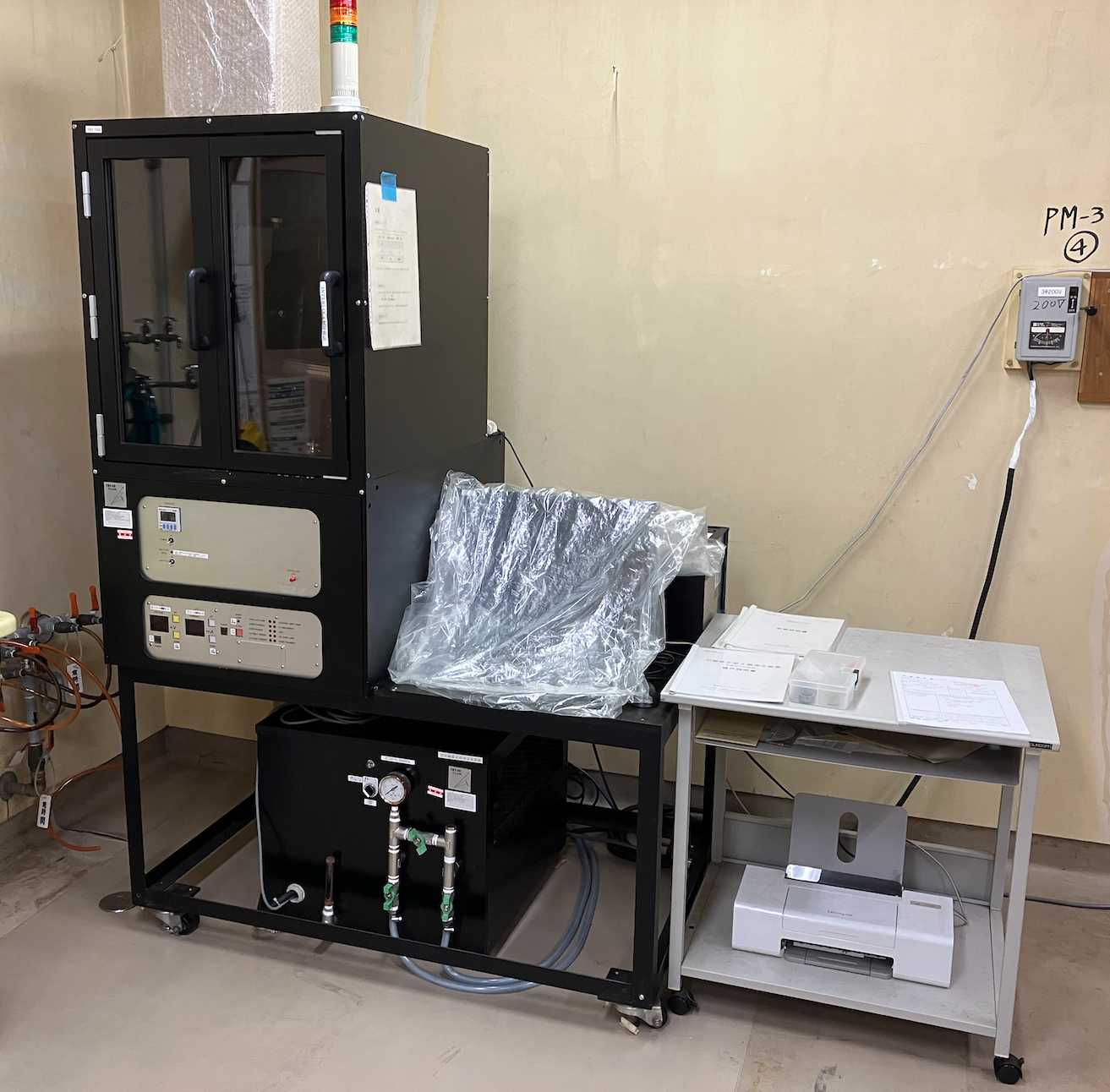

X-ray diffractometer (Laue Camera)

Equipment specifications:
TRY-IPX(E) made by Try SE

Installation location: Metallurgy laboratory

Inert-gas Glove Box

Equipment specifications:
MB130 B-G Labmaster made by MBRAUN Germany
H2, O2 < 1 ppm

Installation location: No. 2 chemistry laboratory

Inert-gas Glove Box

Equipment specifications:
System-2000M (GBX-001-S) made by VAC USA
H2, O2 < 1 ppm

Installation location: No. 2 chemistry laboratory

ICP atomic emission spectrometer (ICP-AES)

Equipment specifications:
ICPS-7500 made by Shimadzu Corporation
Wavelength range: 163 to 900 nm
Measured elements: 72 elements
Plasma observation directions: Can switch between horizontal direction and axial direction

Installation location: No. 2 chemistry laboratory

Infrared spectrometer FT-IR

Equipment specifications:
FTS 6000 Spectrometer made by BIO-RAD
Light source: Ceramic light source
Beam splitter KBr or Mylar film
Detector MCT or DTGS
Variable angle ATR cell
Wavenumber range 7800 cm-1 to 200 cm-1

Installation location: Measurement laboratory

Potentiostat,Electrochemical Quartz Crystal microbalance

Equipment specifications:
HZ-3000 by HOKUTO DENKO CORPORATION
Current detection minimum range: 10 nA
Quartz Crystal Controller HQ-101C
Oscillation frequency: 6 MHz

Installation location: No. 2 chemistry laboratory

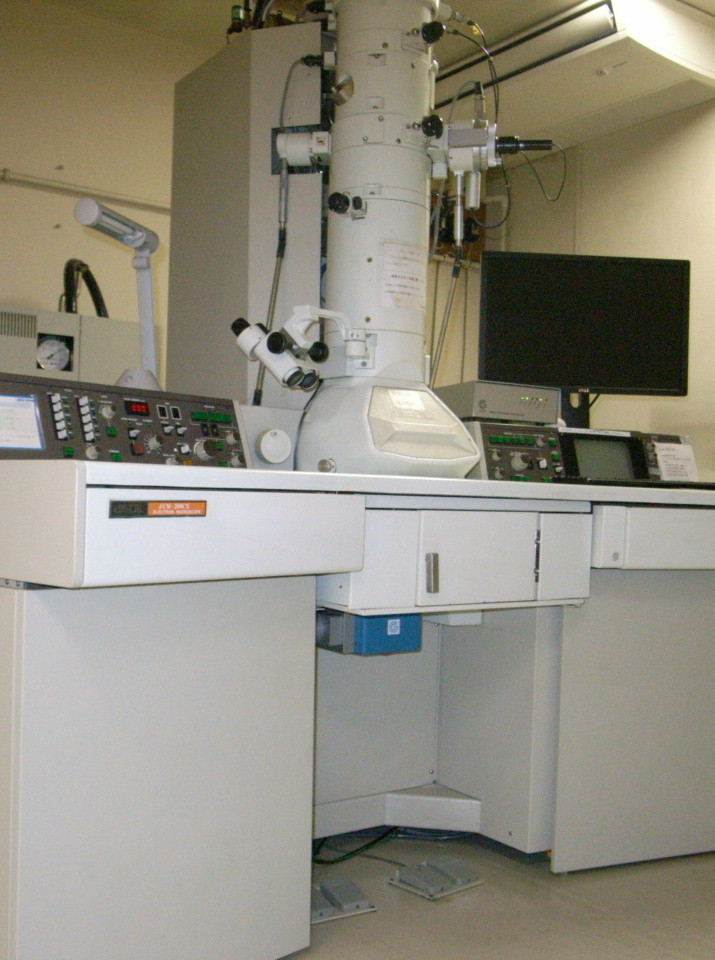

Transmission Electron Microscopy

Equipment specifications:
JEM-2000FX by JEOL Ltd.

Installation location: Electron microscope room
